Drop Bolt (DB-100S)

Cart 0
Search
Banner

SHOP


Access Control System

Availability: Out Of Stock

  • $60.00
Key Features

Specification:

Feature: Fail-Safe

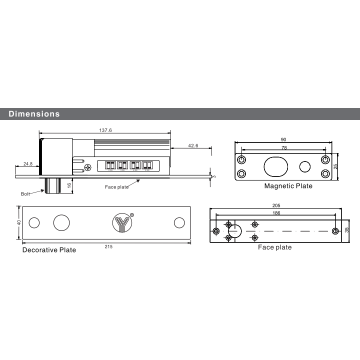

  • Face Plate: 205Lx35WX40H (mm)
  • Strike: 90Lx25Wx2H(mm)
  • Voltage: DC12V
  • Start Current: 900mA
  • Standby Current: 120mA
  • Solid Bolt polishing housing, 800Kg Holding Force
  • Suitable For: Wooden Door, Glass Door, Metal Door.
  • Surface Temp: Low Temperature
  • Induction Distance: 8mm
  • Operating temp:-10+55(14~131F)
  • Operating Humidity: 090% (non-condensing)
  • Special Designed: Tested to 500000 cycles
  • Face place material: High Aluminium
  • Weight:0.72kg
Side
